CAD render 3ring construction


Frodo - a 10 inch travel Dobson

10 inch, f/4.8 newtonian

deutsch

english
TM logo Telescope Making
Web Ring
Next | Previous | Random | List Sites
Next 5 | Previous 5 | Join



home

features!

numbers

basic considerations



optics
hogging out
smoothing the curve
polishing
foucault tester
figuring
silvering



mechanics
mirror cell
wire spider
focuser
middle ring
rocker box



travel and assembly

performance

acknowledgements





travel and assembly

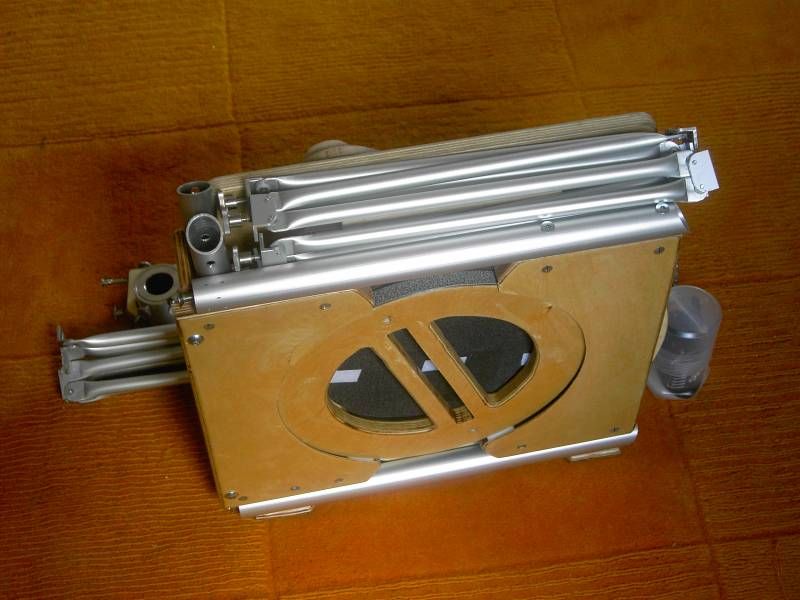

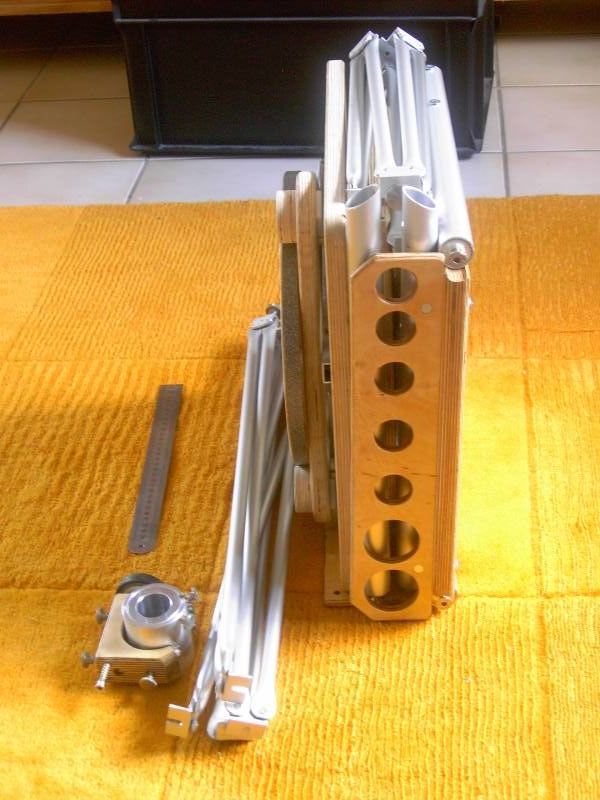

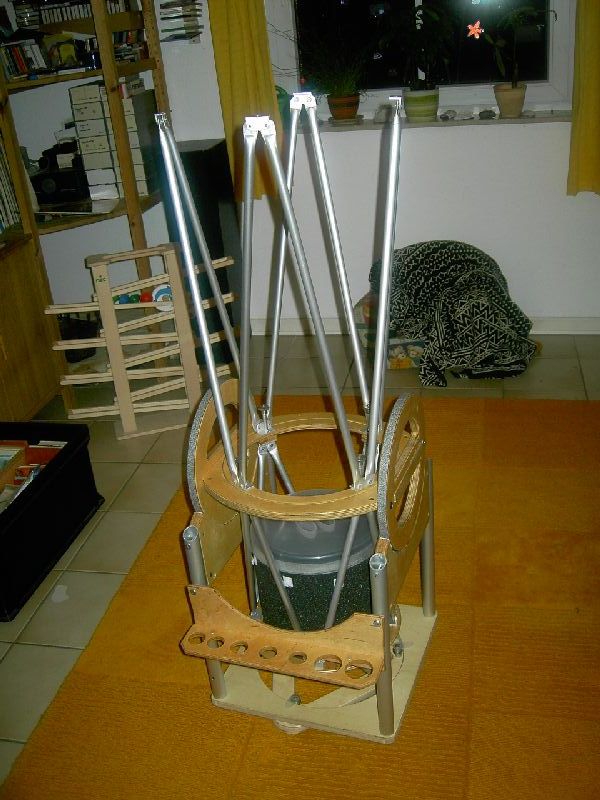

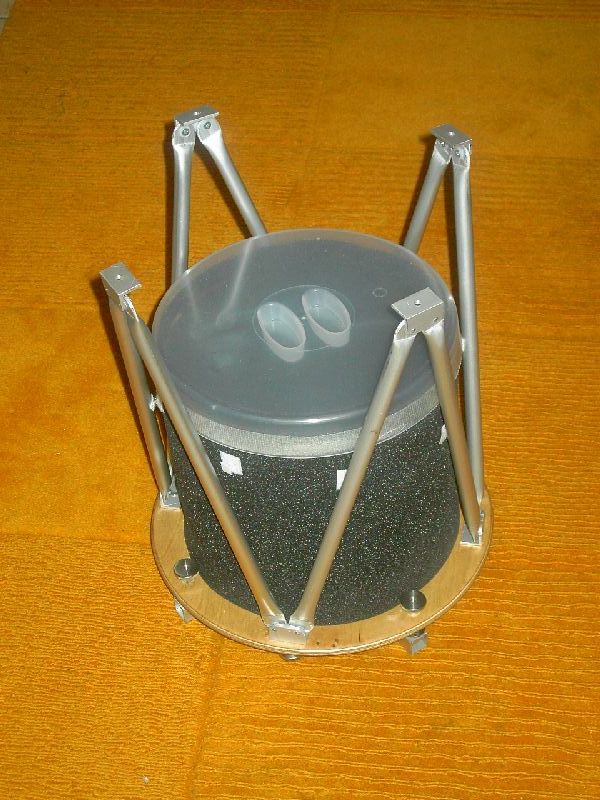

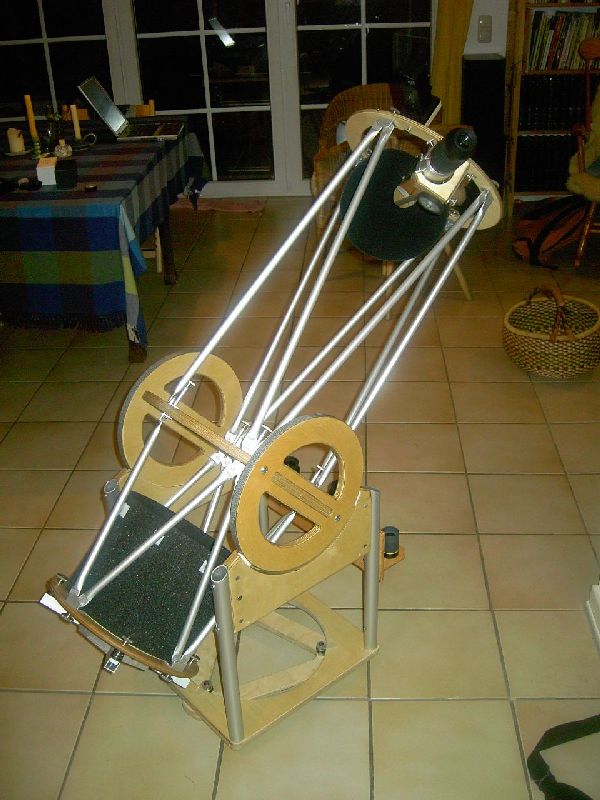

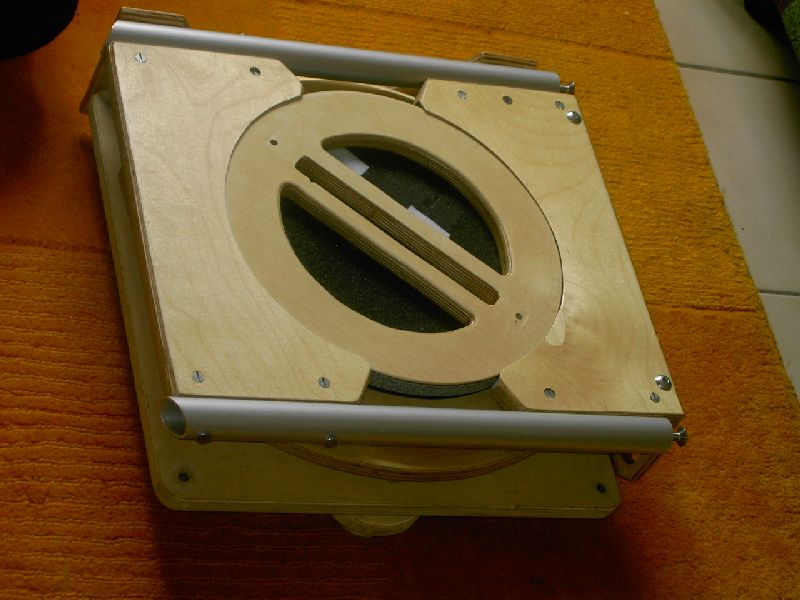

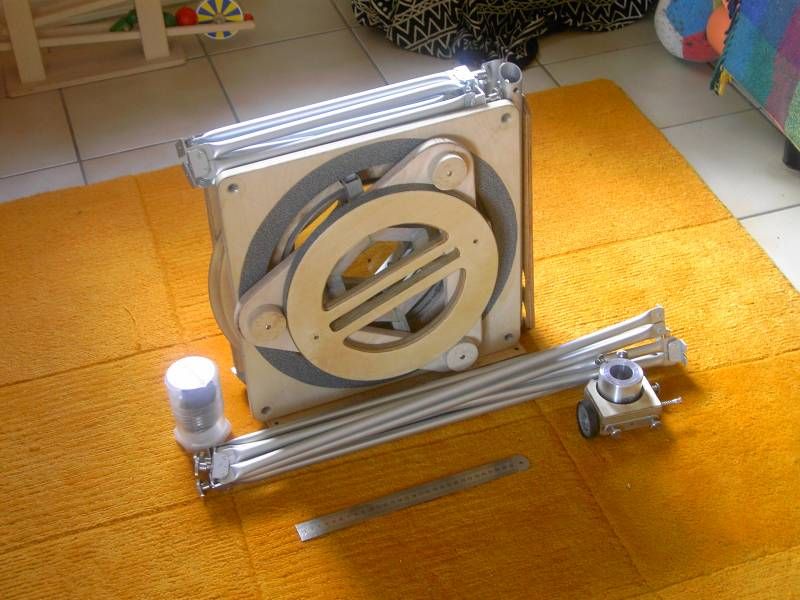

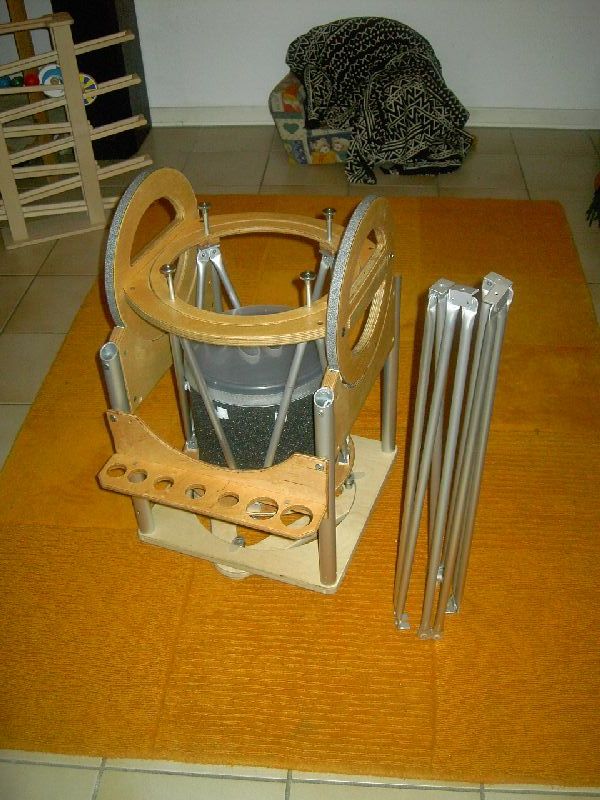

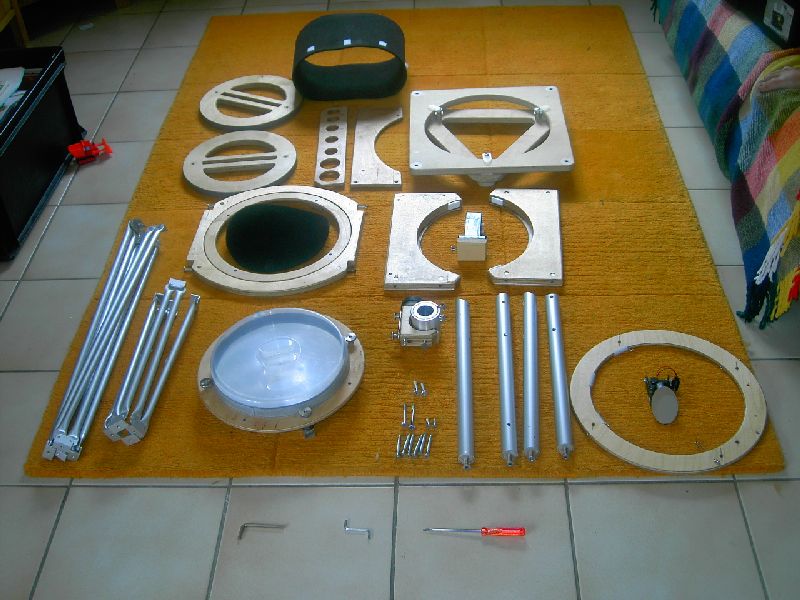

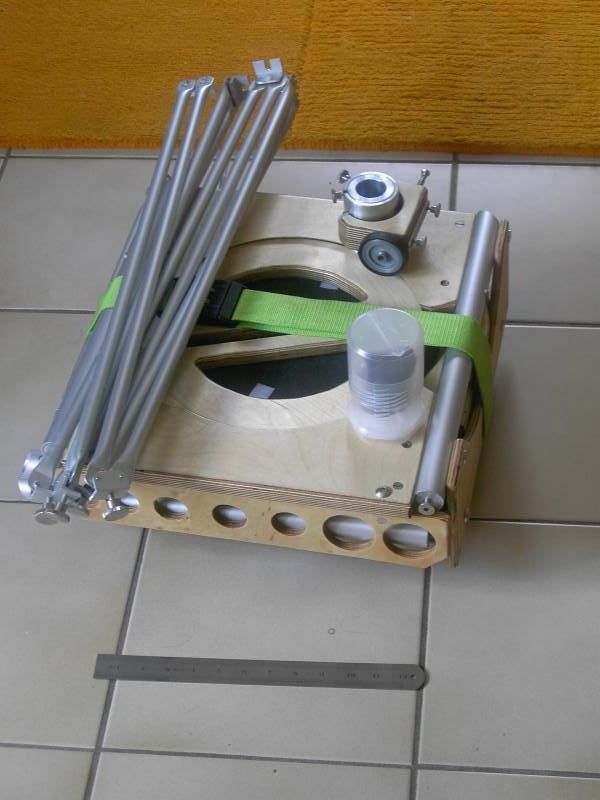

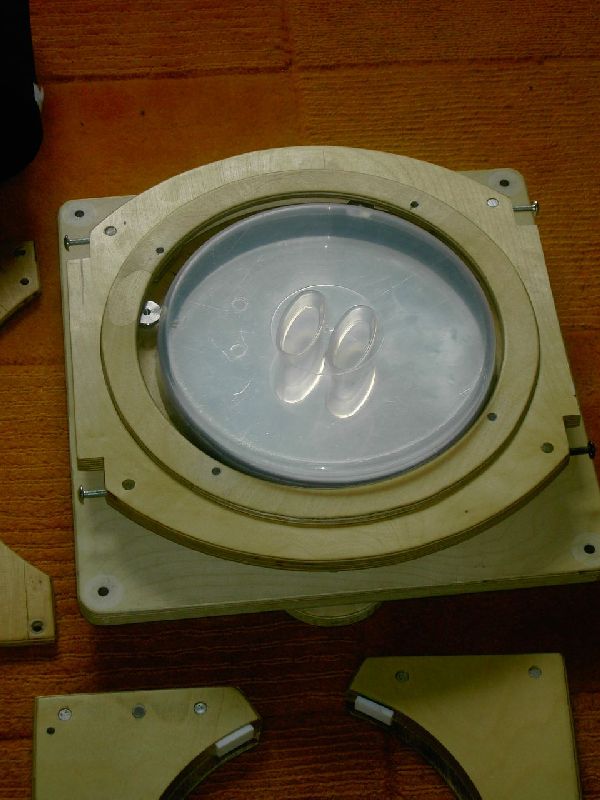

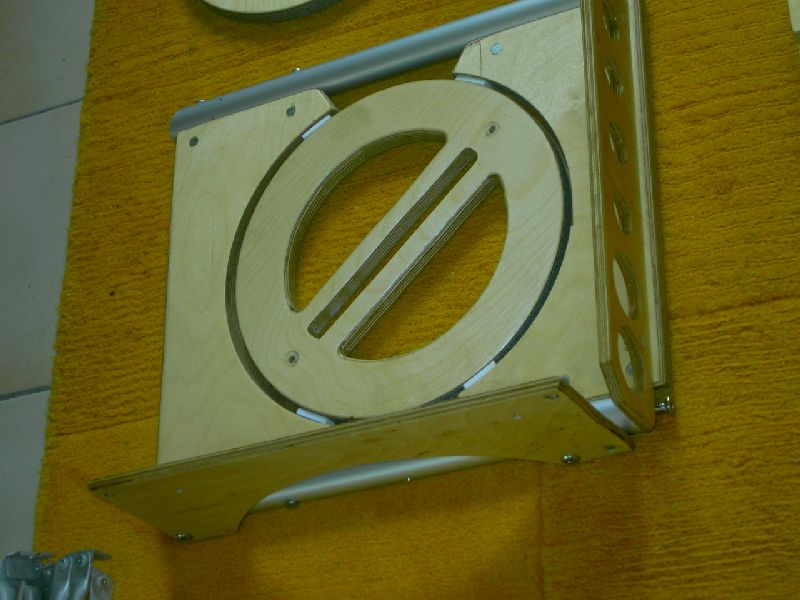

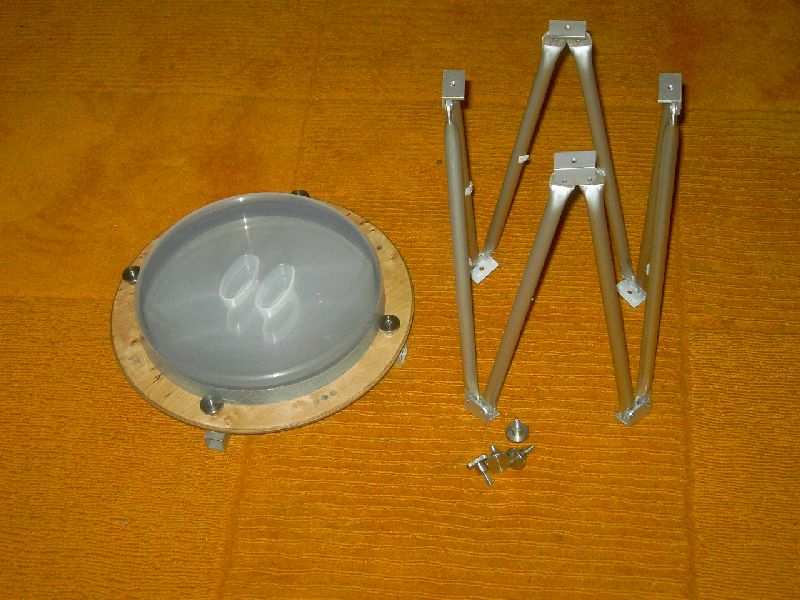

Here are a few pictures showing the assembly from the fully collapsed travel mode. Setting up and collimating the scope takes about 30 minutes. When I take the scope to a dark site for just one night I can leave it assembled and fit the two parts - roker box and OTA - easily into the trunk of my car. Then setup takes 10 seconds.
