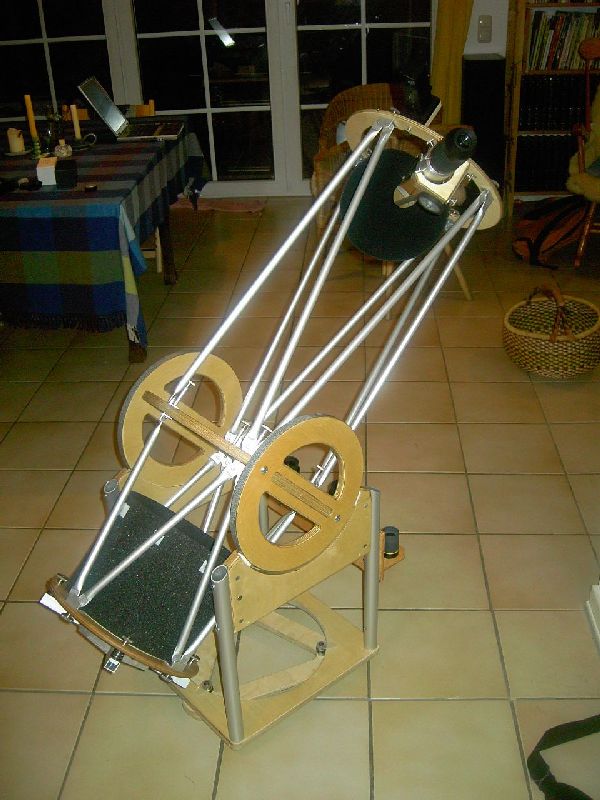

This is Frodo - the ringbearer! A travel Dobson almost entirely made out of plywood rings and aluminium tubes (more or less...)



(click the image for higher resolution and use the back button or backspace)

10 inch, f / 4.8


That's Frodo in travel mood. The ruler is 12 inch / 30 cm long. The basic dimesions are: 48 cm x 46 cm x 16 cm
ready to travel
