rocker box

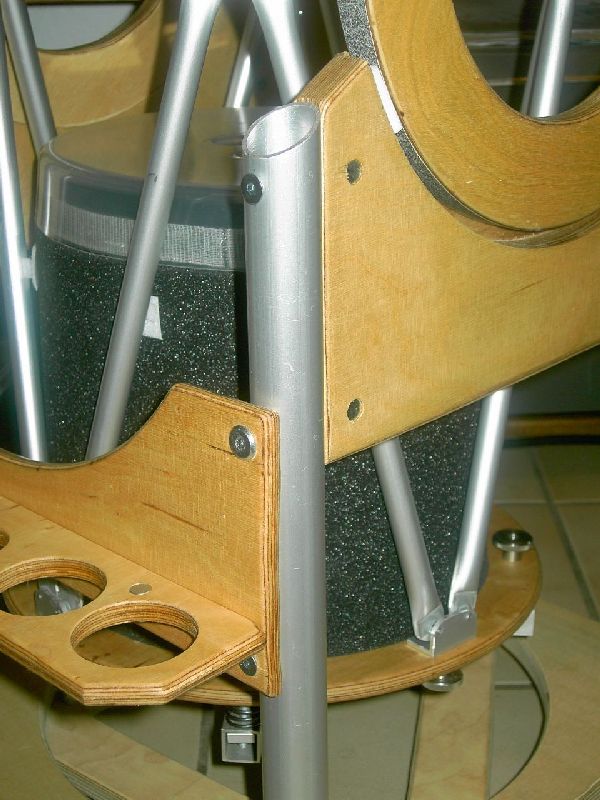

The rocker box was a bit tricky as I did want it to be collapsible also. As the rest of the scope was a mixture of aluminium and wooden parts, I felt like sticking to this theme and used 30 mm aluminium tubing at the corners that connect to the 18 mm plywood ground board through M8 socket screws. This is already quite rigid and further strengthened by the attached boards that make up the altitude bearings and eyepiece holder.

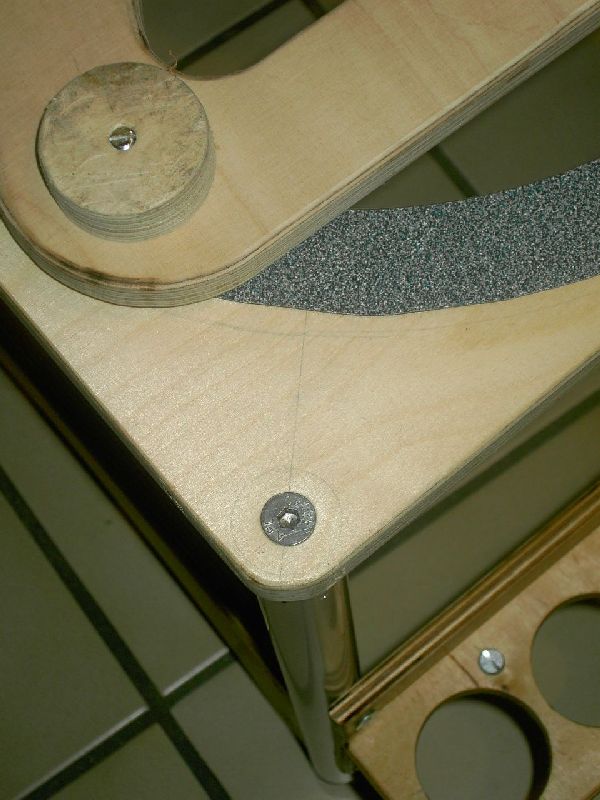

rocker box   rocker box with azimuth bearings upside down

The ground triangle is equipped with the three Teflon azimuth bearings as well as three roller skate bearings to keep the ground board in place

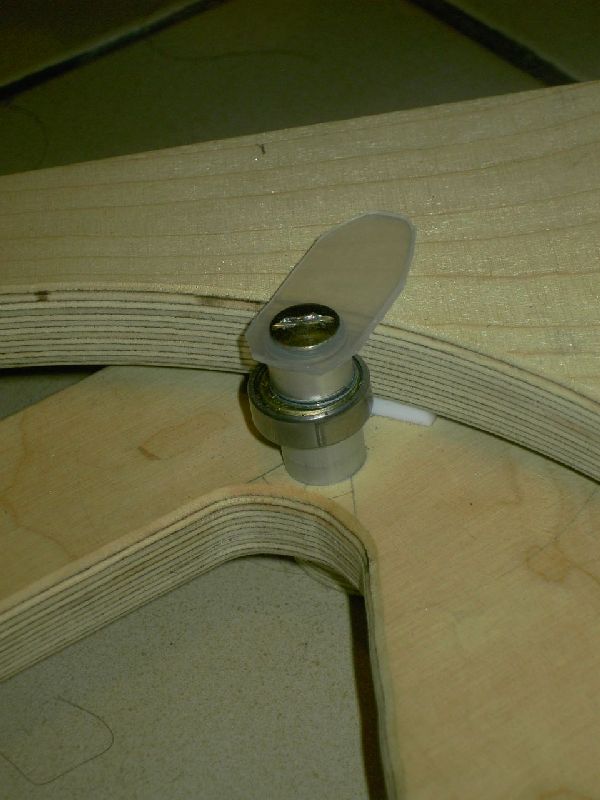

ground triangle with roller skate bearing
